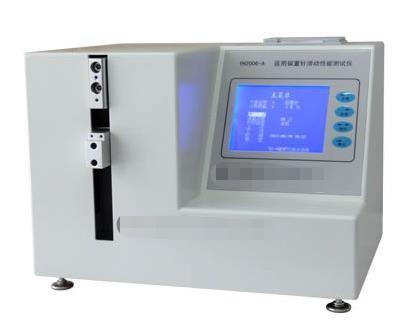

Medical Indwelling Needle Sliding Performance Tester

Product introduction:

The slide performance tester for medical indwelling needle is designed and manufactured according to relevant standards. The instrument is specially used to test the slip performance of indwelling needle.

The tester is composed of intelligent controller, force measuring mechanism, transmission mechanism, ranging mechanism and printer. The intelligent controller is composed of CPU, motherboard, LCD, keyboard, power supply and so on.

The screen is displayed in all Chinese windows, and the keyboard controls the cursor for options, operation and setting. It can be operated according to the prompts without training.

It adopts 5.7 inch (120 × 90) single color LCD touch screen and Chinese menu display. Nominal size, pipe length, test times, up, down, time, calibration. The menu on LCD is controlled by keyboard, and test data is printed on board. Real time display of starting force, average force, maximum force, minimum force and needle moving distance and force.

Nominal specification: all medical indwelling needles (four kinds) produced by Suzhou Linhua Medical Equipment Co., Ltd.

Test load: 0 ~ 12n, accuracy: 0.1N, resolution: 0.01N. (it may change in practice, but the accuracy

shall not be lower than the national first-class testing machine standard)

Moving speed: 100 mm / min (according to GB 15811-2001);

Printing mode: single test force curve, 8 times, 13 times or 20 times test data, average value and deviation value.

Net weight: 11kg

Overall dimension: 260 × 400 × 290 (mm)
