Product Description:
The strength and puncture force tester for medical needle tip is
designed and manufactured according to the relevant standards of
gb4506-1984 "needle tip puncture force and strength test method",
yy0166-2002 "suture needle with thread", yy0043-91 "medical suture
needle", gb2024-94 "medical acupuncture needle", and its technical
performance and indicators fully meet the relevant national
standards of the pharmaceutical industry. It is specially used to
test the strength and puncture force of medical needle tip.
Product introduction:

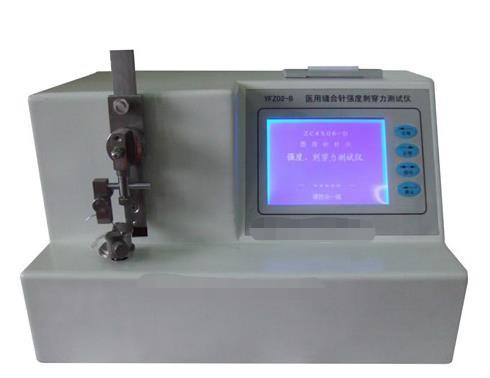

Yfz02-b medical needle tip strength and puncture force tester is
composed of intelligent controller, force measuring mechanism,
ranging mechanism, printer and other parts. The intelligent
controller is composed of CPU, motherboard, LCD, keyboard, power
supply and so on. The screen is displayed in all Chinese windows,
and the keyboard controls the cursor for options, operation and
setting. It can be operated according to the prompts without
training.
It adopts 5.7 inch (120 × 90) LCD screen and Chinese menu operation
of touch screen. Nominal specification, test items, load to be
loaded, printing, testing, uplink, downlink, time, calibration. The
menu on LCD is controlled by keyboard, and test data is printed on
board.
Test items: strength and piercing force;
Nominal specification: 0.2-1.3mm;
Set load: 0.2 ~ 2.0N, accuracy: ± 0.01N;
Loading rate: when loading to the set value, the speed is ≤
0.098n/s
The hardness test results and the average hardness of each test
were 3 times.
Net weight: 11kg
Overall dimension: 400 × 290 × 260 (mm)
Technical parameters:
Environmental Science:
Working temperature: 5 ～ 40 ℃
Relative humidity: 45-80%
Power supply voltage: 220 V ± 22 V
Power grid frequency: 50 Hz ± 1 Hz
Related accessories:
1. One main machine
2. 1 roll of printing paper
3. A set of fixture
4. A set of weights
5. One year warranty
6. Operation instructions
