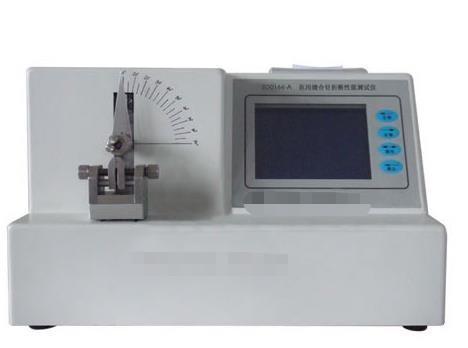

Tester for fracture performance of medical suture needle

Product introduction:

It adopts 5.7 inch (120 × 90) single color LCD touch screen and Chinese menu display. Nominal specification, test load, print, test, uplink, downlink, time, calibration. The menu on LCD is controlled by keyboard, cutting force is loaded automatically, wire diameter data is recorded automatically, data report is output automatically, and test data is printed on board, which fully conforms to the regulations of "yy0043-2005".

Tensile test range: 0.1 ~ 30n, error no more than ± 0.1N, resolution 0.01N;

Loading rate: 100 mm / min

Nominal specification: 0.2-1.3 mm;

The angle of fixture is 180 degrees

Printing mode: it can print 10 times of test average data and its total average value and deviation value.

Net weight: 8kg

Overall dimension: 260 × 400 × 290 (mm)

Shanghai kerang technology co., ltd is located in Shanghai City, China, and was established in 2018.It is a company specializing in the field of automation technology: technology development, technology transfer, technical consultation and technical service; installation, design, commissioning and maintenance of automation equipment; and other high-tech enterprises. And have strong R & D capabilities in the field of test instrument industry. The testing equipment developed by the company is widely used in many industries such as electronics, home appliances, etc.

We have strong technical reserves and solid technical strength, especially in the field of environmental testing equipment or product online monitoring. The newly developed products are used in aerospace, aerospace, nuclear industry and other projects.

Looking forward to your inquiry and negotiation.
