Medical Indwelling Needle Blood Returning Instrument Tester

Product introduction:

The instrument is designed and manufactured according to yy0285 standard. Its technical performance and index fully conform to the relevant standards of national pharmaceutical industry. It is specially used for the measurement of catheter flow.

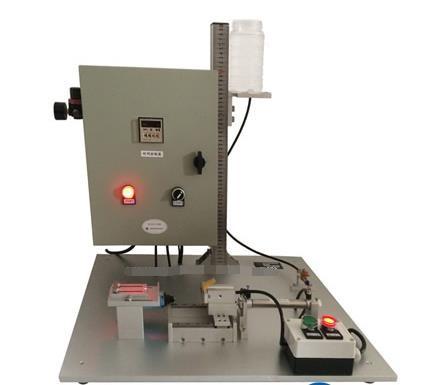

Hxy2011-a medical indwelling needle blood returning instrument is composed of intelligent controller, force measuring mechanism, ranging mechanism, printer and so on. The intelligent controller is composed of CPU, motherboard, keyboard and power supply. With the keyboard to control the cursor for options, operations, settings, no training can follow the prompts to operate.

① Cylinder requirements: round, stroke 6cm, pressure of 0.3 ~ 0.7MPa, speed of 10mm / s,
The length of the pipe is 105mm (the current cylinder is 105mm in shape and 60mm in stroke);
Brand: Yadeke, J / no PC 0214, max. press. 9.9 kgf / cm2 psi)
External diameter: 15mm, disposable venous indwelling needle (Draft for comments).
② Timing resolution: 0.01s, 0 ~ 60min adjustable
Size: 400 × 290 × 240 (mm)

Technical parameters:
Environment:

Working temperature: 5 ~ 40 ℃

Relative humidity: 45 ~ 80%

Power supply voltage: 220 V ± 22 V

Power grid frequency: 50 Hz ± 1 Hz
Power consumption: 200va
Loading range: 0 ~ 12n, accuracy: ± 1%

Shanghai kerang technology co., ltd is located in Shanghai City, China, and was established in 2018.It is a company specializing in the field of automation technology: technology development, technology transfer, technical consultation and technical service; installation, design, commissioning and maintenance of automation equipment; and other high-tech enterprises. And have strong R & D capabilities in the field of test instrument industry. The testing equipment developed by the company is widely used in many industries such as electronics, home appliances, etc.

We have strong technical reserves and solid technical strength, especially in the field of environmental testing equipment or product online monitoring. The newly developed products are used in aerospace, aerospace, nuclear industry and other projects.

Looking forward to your inquiry and negotiation.
