Contraceptive device recovery tester

Product description
T-iud restorative tester is designed and manufactured according to the relevant provisions of gb11236-2006. It is specially used to test the recovery tester of t-iud.

Product introduction:

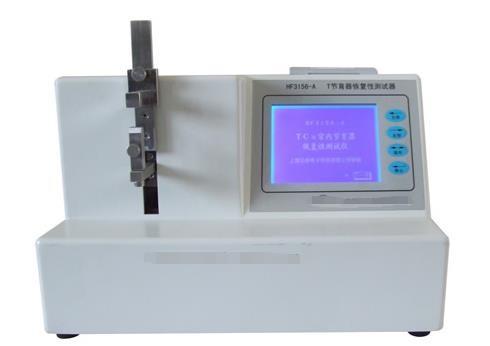

The recovery tester of hf3156-at contraceptive device is composed of intelligent controller, printer and so on. The intelligent controller is composed of CPU, motherboard, LCD, keyboard, power supply and so on. The screen is displayed in all Chinese windows, and the keyboard controls the cursor for options, operation and setting. It can be operated according to the prompts without training.
It adopts 5.7 inch (320 × 240) single color LCD touch screen and Chinese menu display. Nominal specification, test load, print, test, uplink, downlink, time, calibration. The menu on LCD is controlled by keyboard, automatic test, etc.; data report is output automatically and test results are printed on board, which fully meet the requirements of gb11236-2006.
Moving distance: 0-30mm.
Test speed: 10-20 mm / min.
Fixture: equipped with various T-type IUD clamps.
Net weight: 12.5kg
Overall dimension: 275 × 290mm
Technical parameters:
Working temperature: 5 ～ 40 ℃
Relative humidity: 45-80%
Power supply voltage: 220 V ± 22 V
Power grid frequency: 50 Hz ± 1 Hz

Shanghai kerang technology co., ltd is located in Shanghai City, China, and was established in 2018.It is a company specializing in the field of automation technology: technology development, technology transfer, technical consultation and technical service; installation, design, commissioning and maintenance of automation equipment; and other high-tech enterprises. And have strong R & D capabilities in the field of test instrument industry. The testing equipment developed by the company is widely used in many industries such as electronics, home appliances, etc.

We have strong technical reserves and solid technical strength, especially in the field of environmental testing equipment or product online monitoring. The newly developed products are used in aerospace, aerospace, nuclear industry and other projects.

Looking forward to your inquiry and negotiation.
