    Torque Balance Plug Socket Tester SOB-1 IEC 60884 0-200mm Force Arm

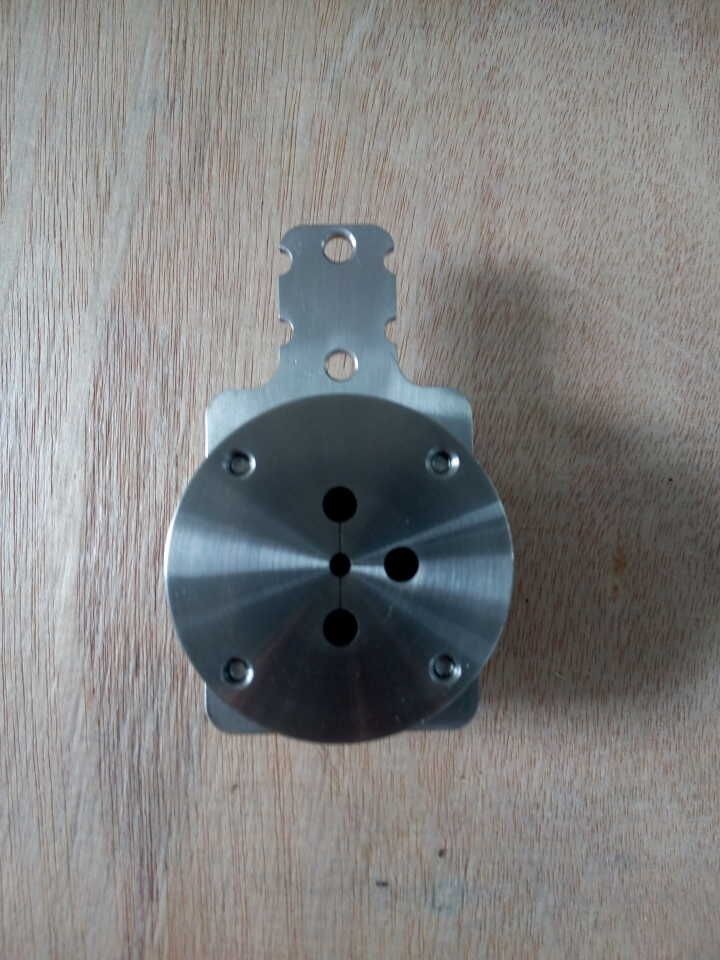

    Socket-outlet Torque Balance SOB-1


    Product information:


    The HT plug torque tester conforms to the standard of IEC60065 figure 11. It is used for checking whether the mechanical stress which occurs when the Direct Plug-in Equipment with plug pin normally insert into the socket is in the required range.

    A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.
    The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
    With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
    After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.


    Technical parameters:


    weight2.5N*1, 1N*1
    PlugUL plug*1, Australia plug*1,all-purpose plug*1
    Conforms to standardIEC60884,VDE0620,IEC60598,IEC60065Fig11
    Arm of force0-200mm
    The distance from the contact surface and the Axis of the surface8mm
