Load box LP-3
Product overview:
This load box is designed and manufactured according to
IEC60884,IEC61058,IEC606691 standards and etc. It is used for the
on-off ability test and the normal operation lifespan test of the
Switches for household and similar fixed-electrical installations.
Besides, it is also applied in the test of breaking volume of plug
and socket, and mechanical action of normal operation lifespan.
This device is with blue framework and gray cover. The top of this
apparatus is the operation control panel on which there are
switches for controlling power supply, for the electric capacity
conversion and for the load type conversion. There are also the
displaying meters of connecting current and voltage as well as
power, the buttons of start and stop, alarm, the status indicator

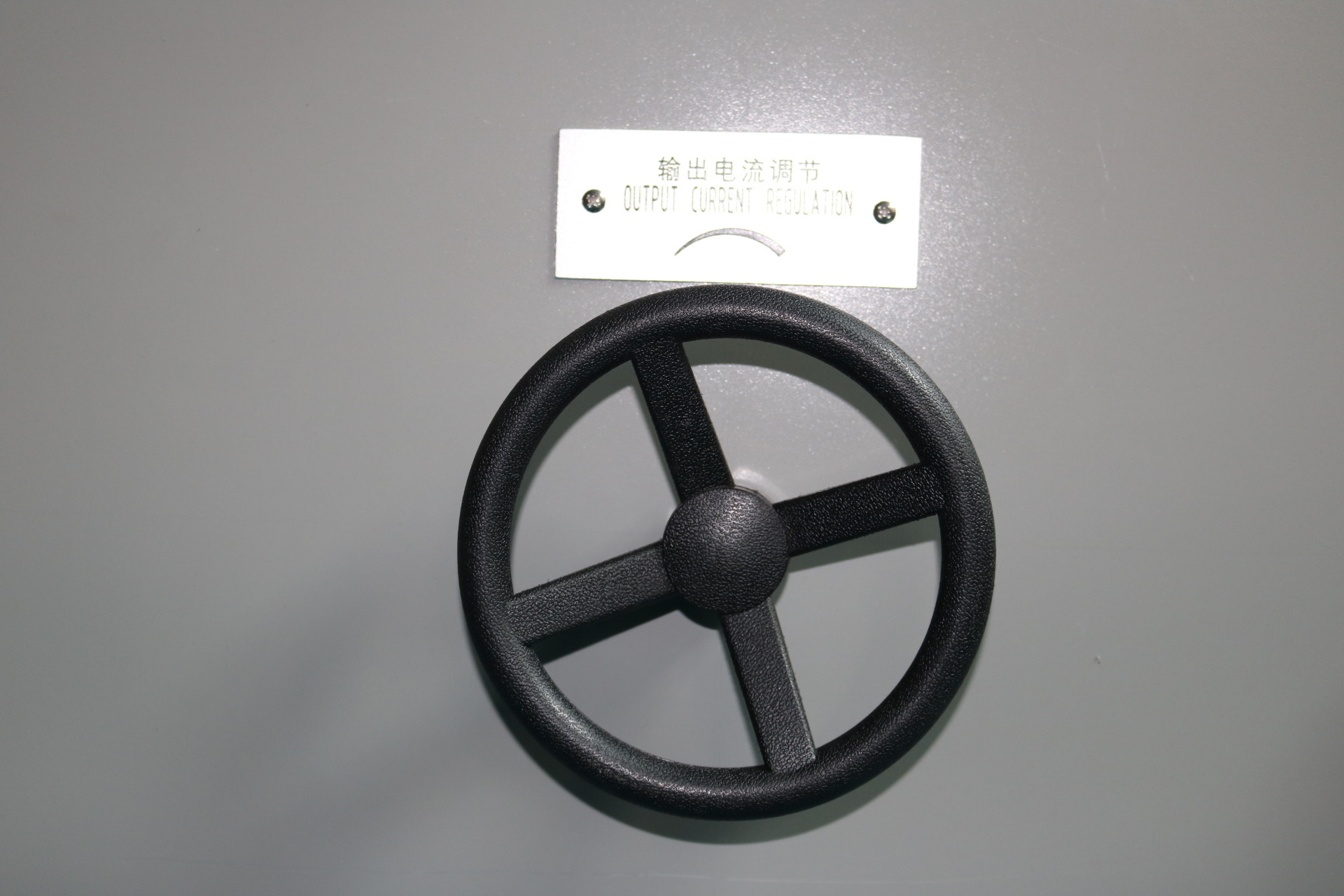

light and so on. Below are the according knobs for output voltage
adjustment, for current adjustment and for inductance adjustment.
There are three load lines. Each of them has the function of
resistive, inductive and capacitive Load test. The kind of load
test can be chosen by the transferring switch. The load box inside
is cooled by the strong wind convection. There are terminals below
the load box through which the load box can be connected with the
switch and plug-socket endurance tester using the wire. During the
process of test, the equipment outputs the current and voltage as
well as power.
Shanghai kerang technology co., ltd is located in Shanghai City,
China, and was established in 2018.It is a company specializing in
the field of automation technology: technology development,
technology transfer, technical consultation and technical service;
installation, design, commissioning and maintenance of automation
equipment; and other high-tech enterprises. And have strong R & D
capabilities in the field of test instrument industry. The testing
equipment developed by the company is widely used in many
industries such as electronics, home appliances, etc.
We have strong technical reserves and solid technical strength,
especially in the field of environmental testing equipment or
product online monitoring. The newly developed products are used in
aerospace, aerospace, nuclear industry and other projects.
Looking forward to your inquiry and negotiation.
Technical parameters:
| No. | item | parameters | remark |
| 1 | Meter Power | single phrase with ground wire AC220V/50Hz | |
| Load Power | Three-phrase and four-wire AC380/50Hz(single phrase AC220V,in total
three pairs) | |
| 2 | Working station | Three stations (It can be customized) | |
| 3 | Digital display voltage meter | 0～300V,acurancy:±0.5% | |
| 4 | Digital display current meter | 0～40A,accurancy:±0.5% | |
| 5 | Digital display power meter | 0～12KW,accurancy:±0.5% | |
| 6 | Digital display power factor meter | 0.3～0.999,accurancy:±0.5% | |
| 7 | Load method | Resistive, inductive and capacitive load (three in one) it can be
transformed. | |
| 8 | Capacitive load | 70uf,140uf,7.3uf can be chosen. | |
| 9 | Load output | Each power and interval power can be chosen. | |
| 10 | Counter | 0～999999,it can be preset. | |
| 11 | The volume of load power supply | 3*10KVA | |
| 12 | The maximum of the output current | 30A,when it exceeds 32A, it stopped automatically. | |
| 13 | The maximum of the output voltage | 300V, when it exceeds 305V, the load is stopped automatically. | |
| 14 | Atmospheric pressure | 80～106kpa | |
| 15 | Environmental temperature | 5～40°C | |
| 16 | Relative humidity | (20～90)%RH | |
| 17 | Using place | No violent shaking Without electromagnetic interference and dust. No explosive or corrosive gas. Good heat dissipation | |
| 18 | Size and weight | L*W*H=1200*760*1830mm,800kg | |
