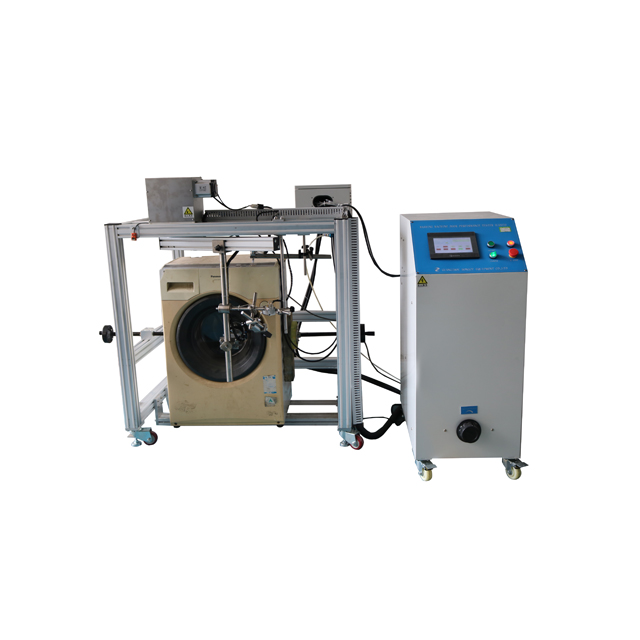

Washing Machine Door Endurance Tester HJ0636
Standard: IEC 60335-2-7 household and similar electrical appliances –
safety: part 2-7:particular requirements for washing machines,
clause 20.101; IEC 60335-2-11 household and similar electrical
appliances – safety: part 2-11:particular requirements for tumble
dryers, clause 20.101.
Application: The device is used for mechanical endurance test to doors of
washing machine and tumble dryer.
Test sample: Washing machine, tumble dryer
Feature: The device uses the MITSUBISHI PLC control, 7 inch color touch
screen operation. Built in voltage regulator, can guarantee the
rated voltage input. The equipment is composed of an electric
control cabinet, a sample holder and two mechanical hand mounted on
the sample holder (step motor drive). The machine frame is made of
high grade aluminum alloy profile, and the mechanical hand is
respectively installed on the beam and the supporting column of the
frame, can satisfy left open door and the upper door test to
different sizes washing machine.
Parameters:
| Control | advanced PLC |
| Display | true color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminum profile |
| Power supply | AC 220V 50HZ |
| Manipulator | Two, side manipulator and upper manipulator. Replaceable vacuum
suction and gripping device. |
| Auxiliary mechanism | 0-50mm stroke adjustable |
| Floor adjustment mechanism | to adjust the sample level, tilt |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | Side manipulator 0-180°, upper manipulator -30-90° |
| Station | One station(left open or upper open) |
