Automatic Appliance Test Equipment Kettle Life Span Test HJ0635 3 Stations

Ask Lasest Price
Brand Name :	KeRang
Certification :	Calibration Certificate (Cost Additional)
Price :	Negotiable
Delivery Time :	30 days
Payment Terms :	L/C,L/T
Supply Ability :	10 set /month

Add to Cart

Product Details
Company Profile

Automatic Appliance Test Equipment Kettle Life Span Test HJ0635 3 Stations

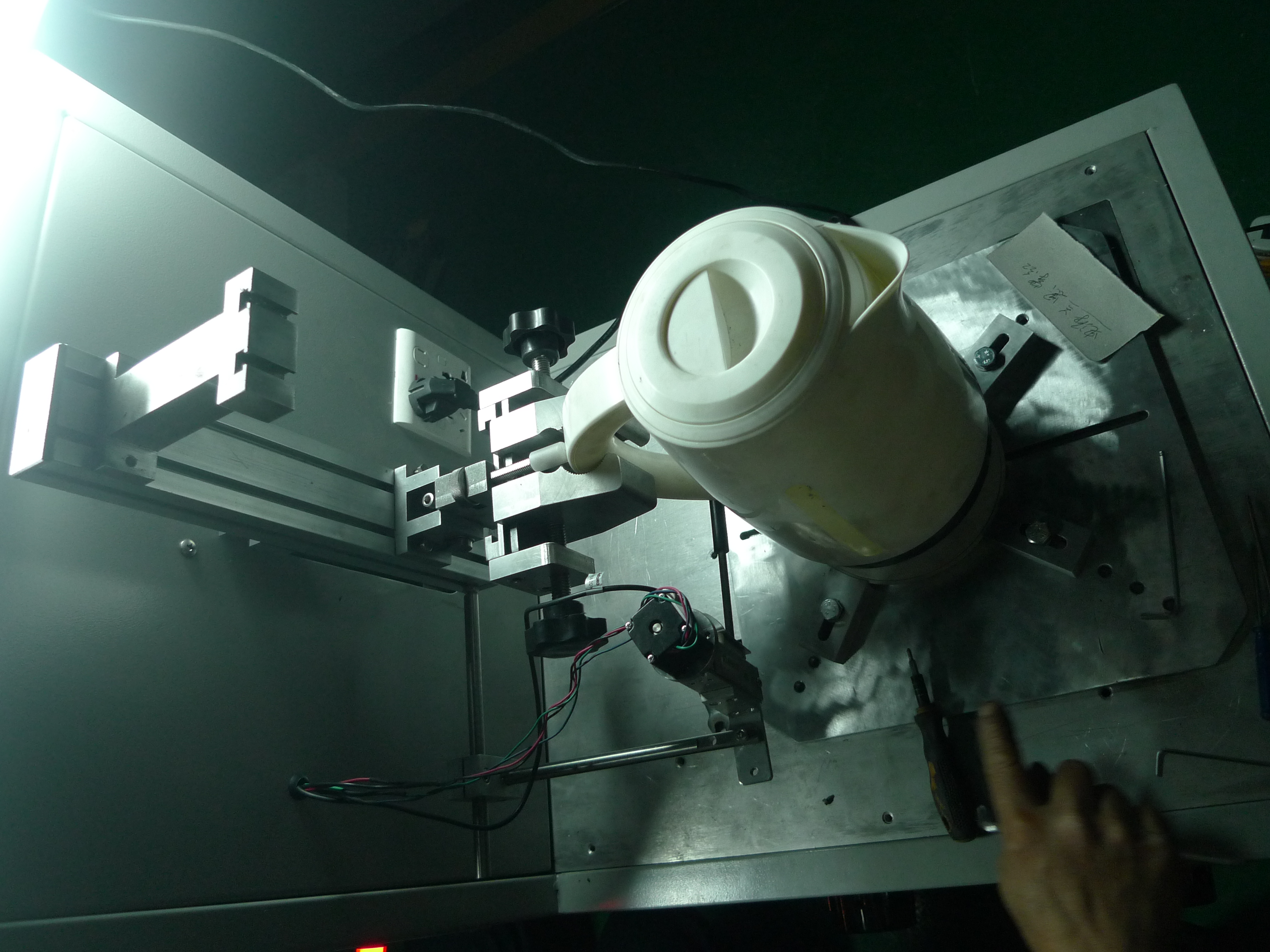

Automatic Kettle Life-span Tester HJ0635

Standard: IEC 60335-2-15 household and similar electrical appliances – safety: part 2-15: particular requirements for appliances for heating liquids, clause 19.101, 19.102, 22.103.

Application: The device is used for life-span test to various conventional cordless electric kettle.

Test sample: Cordless electric kettle

Feature: The device uses the MITSUBISHI PLC control, 7 inch color touch screen operation. The built-in adjustable load current and voltage can be adjusted, to apply the input of 0.85 times or 1.15 times power; the equipment can automatically add water, to conduct boil water test and dry heat water cooling testing. The equipment can realize the functions of automatic electricity dry heating, automatic filling, automatic water pouring, automatic boiling water 100 times, and automatic shutdown when reaching preset test times.

Parameters:

Power supply	AC220V 50Hz
Stations	3 Stations, or 6 stations(can be custom made)
Control	MITSUBISHI PLC electric control, 7 inch color touch screen operation
Basic function	Including dry burning mode (self cooling), dry heating mode (water cooling), plug-in mode (electricity), plug-in mode (no electricity), boiling water mode 5 test functions: 1. dry burning mode (self cooling): start – pouring – reset – dry burning - dry end (thermostat trip) - natural cooling to the thermostat reset - cycle dry burning 2. dry heating mode (water cooling): start – pouring – reset – dry burning - dry end (thermostat trip) –filling water cooling to the thermostat reset - cycle dry burning 3. plug-in mode (no electricity): start – cycle plug and withdraw 4. plug-in mode (electricity): start – filling water – live plug in and withdraw – cycle – interval replace water - cycle 5. burning mode: start - pouring – reset – filling water – heating - boil (thermostat trip) - pouring - reset - cycle
Load	Display test voltage and current of each station
Conduction count	alarm and shutdown when not conducting
Test times	0-999999 preset, automatic stop when test time finished
Main configuration	The frame adopts Aluminum Alloy tube production; and the box door paint; main water contact part adopts 304 stainless steel or Aluminum Alloy
Air source	This machine needs to use compressed air, air pressure -0.6MPa 0.4MPa
Test modes	1) boiling water mode
	2) plug-in mode (electricity)
	3) plug-in mode (no electricity)
	4) hot and cold dry heating mode (water cooling)
	5) hot and cold dry burning mode (self cooling)
Control parameters	1) pouring time: 1～9999(S); pouring reset: 1～9999(S)adjustable
	2)filling time: 1～9999(S); cooling time: 1～9999(S)adjustable
	3)conduction time: 1～9999(S); no conduction time: 1～9999(S)adjustable
	4)rest times: 1～9999(times); rest time: 1～9999(S)adjustable
	5)test times: 1～9999(times); actual counting: 1～9999(times)adjustable
Alarm	1) alarm when preset times completed
	2) no conduction alarm(boiling water mode; plug-in mode (electricity); drying heating mode)
	3) when equipment fails, manual operation can be taken, and the independent operation of each station does not affect each other
