Vessel For Hotplates Test HJ0630
Standard: This device meets the standard of IEC60335-2-9 clause 3.1.9.108
figure 103 and figure 104,Household and similar electrical
appliances-Safety-Part 2-9:Particular requirements for grills,
toasters and similar portable cooking appliances.
Application: It is used to simulate the vessel is placed on the hotplates in
normal operation.
Test sample:Hotplates.
Parameters:
Aluminum vessel:Made of aluminum,flat base with cover, meet the
requirements of table 101 quantity of liquid in the vessel, mainly
used for water boiling test.
Table 101-Quantity of liquid in the vessel
Diameter of cooking zone mm | Quantity of water or oil l |
| ≤110 | 0.6 |
| ＞110 and ≤145 | 1.0 |
| ＞145 and ≤180 | 1.5 |
| ＞180 and ≤220 | 2.0 |
| ＞220 and ≤300 | 3.0 |
| Diameter of cooking zone mm | Approximate dimension |
| a mm | b mm | c mm |
| ≤110 | 110 | 140 | 8 |
| ＞110≤145 | 145 | 140 | 8 |
| ＞145≤180 | 180 | 140 | 9 |
| ＞180≤220 | 220 | 120 | 10 |
| ＞220≤300 | 300 | 100 | 10 |
NOTE: The maximum concavity of the vessel is to be not more than
0.05 mm. The base of the vessel is not to be convex.

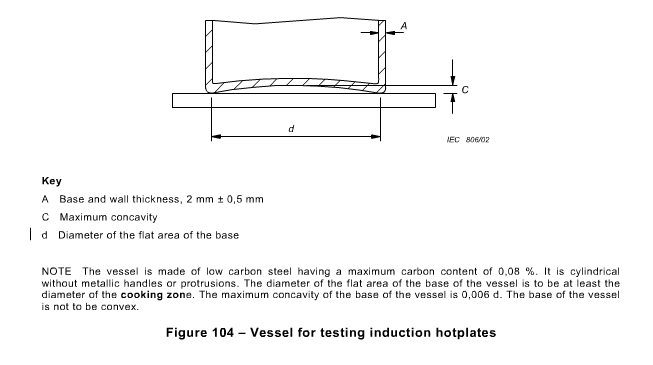

Steel vessels: The vessel is made of low carbon steel having a
maximum carbon content of 0.08%. It is cylindrical without metallic
handles or protrusions. The diameter of the flat area of the base
of the vessel is to be at least the diameter of the cooking zone.
The maximum concavity of the base of the vessel is 0.006d. The base
of the vessel is not to be convex. A3 low carbon steel, surface:
black oxidating. meet the requirements of table 101 quantity of
liquid in the vessel and figure 104 parameters requirement (Φ110mm,
Φ145mm, Φ180mm, Φ220mm, Φ300mm,1 set with 5 pcs), mainly used in
cooking oil heating test.
