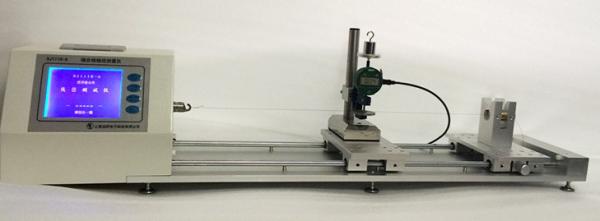

Medical suture diameter tester

The medical suture diameter tester is designed and manufactured according to the provisions of absorbable surgical suture (yy1116-2010) and non absorbable surgical suture (yy0167-2005) on the measurement of suture diameter, which is a special equipment for testing the suture diameter.

Nominal specification: 12-0 5 all medical sutures.

Graduation of wire diameter measurement: 0.001mm. Presser foot diameter: 12.7 ± 0.02 mm; reference plane diameter: 50 mm.

Flatness of presser foot and reference plane: no more than ± 0.005mm.

Parallelism between presser foot and datum plane: no more than one thousandth.

Loading weight: 0 ～ 2kg, accuracy: ± 0.1g

Presser foot load: 210g ± 3G.

Printing mode: it can print 3-point (line 1 / 4, 1 / 2, 3 / 4 position) measurement test data

and average value, and can print 10 times test average value and its total average value and deviation value.

Net weight: 38kg overall dimension: 320 × 1200 × 280 (mm)

Shanghai kerang technology co., ltd is located in Shanghai City, China, and was established in 2018.It is a company specializing in the field of automation technology: technology development, technology transfer, technical consultation and technical service; installation, design, commissioning and maintenance of automation equipment; and other high-tech enterprises. And have strong R & D capabilities in the field of test instrument industry. The testing equipment developed by the company is widely used in many industries such as electronics, home appliances, etc.

We have strong technical reserves and solid technical strength, especially in the field of environmental testing equipment or product online monitoring. The newly developed products are used in aerospace, aerospace, nuclear industry and other projects.

Looking forward to your inquiry and negotiation.
