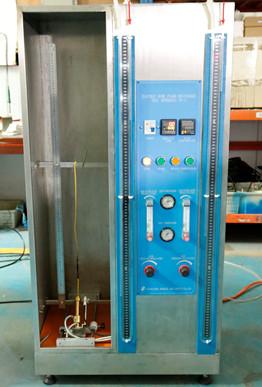

Single Cable Vertical Burning Test Device
Standard: IEC 60950-1,BS EN 60950-1,BS 7002, UL746A,IEC60947.1, IEC730.1.
Application:Suitable for vertical burning test of single cable or optical cable
products, determine the combustion characteristics of insulating
materials.
Test sample:Single cable or optical cable products.
Feature:Using integral intake automatic ignition system, combustion time
delay only 0.1s to ensure that the full combustion of the gas.
Parameters:
| Working voltage | 220V/50Hz |
| Control operation mode | Electrical control, button operation |
| Blast burner standard | IEC60695-11-2 Annex A,Burner opening:Φ7±0.05mm,made of brass |
| Gas flow and gas category | Mixture gas:650±30mL/min propane；10±0.5L/min air,Dual flow meter
adjustment |
| Burning time | 9999X0.1S |
| Burning angle | Tilt 45°±2°,Adjustable |
| Test flame calibration | Temperature measuring copper head:500W:Ф9mm±0.01mm,weight before
drilling:10 ± 0 .05g |
| Thermocouple:The American original Omega φ0.5 armour nickel-chromium/nickel
aluminum wire K-Thermocouple,temperature resistance 1100° |
| Distance between the bunsen burner port to temperature measuring
copper block:95 mm |
| Flame height:Inner flame:55±5mm,Outer flame:180±10mm |
| Temperature rise time from 100±5°C to 700°±3°C 45±5s |
| Combustion chamber | WDH=300×450×1200±25㎜ |
| Gas | >95% propane or coal gas |
| Test sample | Length:600±25㎜,distance from the bottom:50mm |
| Fixed horizontal support of the sample | 2, distance:550mm |
| Dimension | WDH=700×450×1350㎜, weight about 120kg |
