    Children Finger Probe HT-I13

    Ask Lasest Price
    Brand Name : kerang
    Model Number : HT-I13
    Certification : certification
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

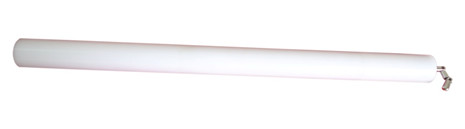

    Children Finger Probe HT-I13

    Children Finger Probe HT-I13


    Standard:IEC61032 figure 13 finger probe 19, IEC335.1,UL1017.

    Application:It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

    Test sample:Easily accessible enclosure live parts or mechanical parts.

    Feature:Can be combined with the push-pull gauge to achieve force of 10N load test.


    Parameters:

    Name/ModelChildren Finger Probe 19/HT-I13
    HemisphericalR2.8±0.05
    Finger probe diameterФ5.6±0.1
    Finger probe length44±0.15
    Joint distance14.67
    Axes of joints diameterФ25.9±0.3
    Axes of joints length101.6±0.3
    Handle diameterФ25.4±0.3
    Handle length464.3±0.8

    Children Finger Probe HT-I13Children Finger Probe HT-I13
