    Children Finger Probe

    Ask Lasest Price
    Brand Name : kerang
    Model Number : HT-I12
    Certification : certification
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Children Finger Probe

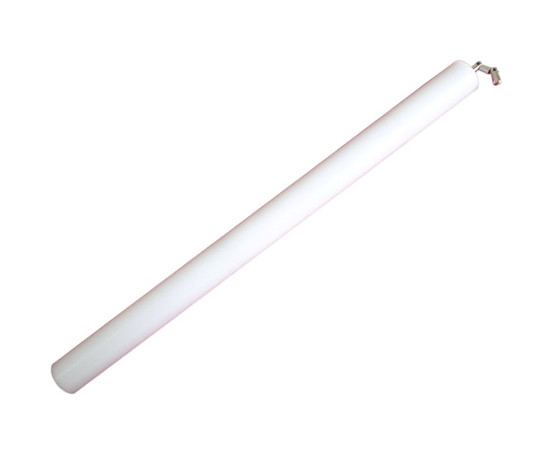

    Children Finger Probe HT-I12

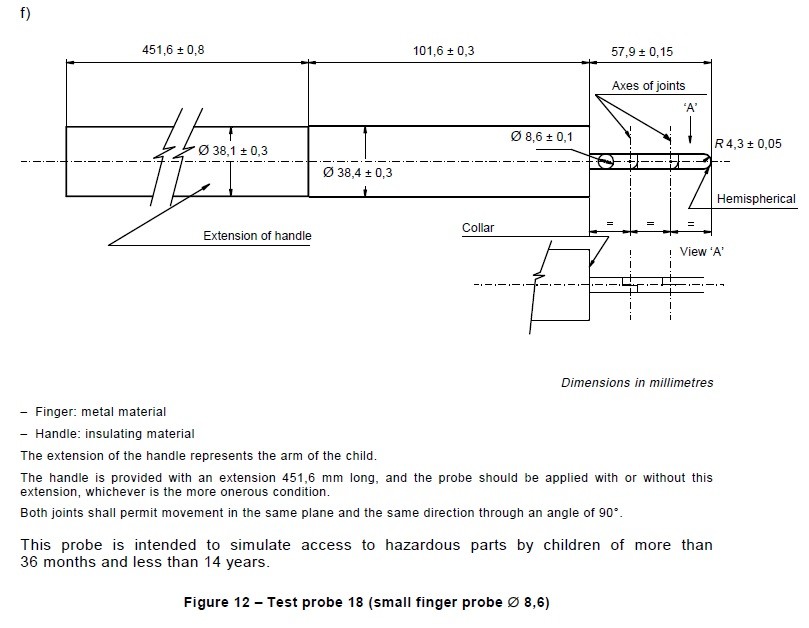

    Standard:IEC61032 figure 12 finger probe 18, IEC335.1,UL1017.

    Application:It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

    Test sample:Easily accessible enclosure live parts or mechanical parts.

    Feature:Can be combined with the push-pull gauge to achieve force of 10N load test.


    Parameters:

    Name/ModelChildren Finger Probe 18 /HT-I12
    HemisphericalR4.3±0.05
    Finger probe diameterФ8.6±0.1
    Finger probe length57.9±0.15
    Joint distance19.3
    Axes of joints diameterФ38.4±0.3
    Axes of joints length101.6±0.3
    Handle diameterФ38.1±0.3
    Handle length451.6±0.8

    Children Finger ProbeChildren Finger ProbeChildren Finger Probe
