Test Probe with Force HT-I20 & HT-I21

Standard:IEC60884-1 figure 9 and figure 10.

Application:The HT-I20 test probe with 20N force is used to test whether the live parts inside can be touched.

The HT-I21 test probe with 1N force is for testing whether the live parts with the protection of socket can be touched.

Test sample:Socket.

Feature:Nylon handle + probe.

Parameters:

1,Test probe with force of 20N HT-I20:

The probe part: 3+0.03 0×1+0.015 0 ×80±0.5;

the diameter of the round: R0.2±0.05, with 20N force.

2,Test probe with force of 1N HT-I21:

The probe part: Φ1+0.015 0 ×80±0.5; the diameter of the round:

R0.05,with 1N force.

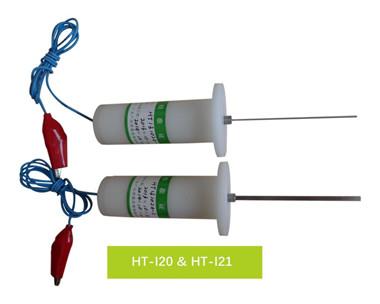

Picture for reference:
